Bar Billiard Table Score Board Pear Drop (June 2022)

Needed a spare pear drop score board marker. These are no longer available to buy so I decided to make one.

I initially modelled one in 3D CAD but it looked far to neat and symetrical so I thought it would look out of place next to an original part.

To get round this I 3D scanned an original part and reverse engineered it.

The 3D scan was used to produce the CNC machining program (gcode) for just the outside profile.

The dovetail was hacksawed and filed by hand.

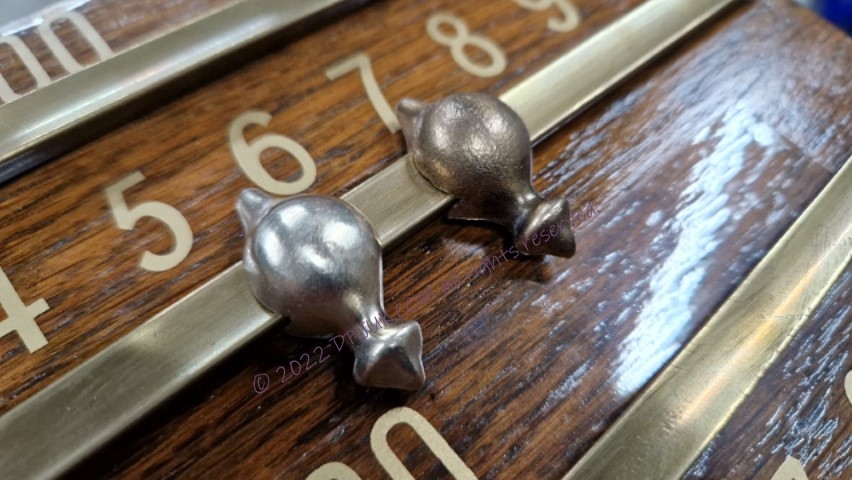

(Left) the new part next to the origianl part (Right)

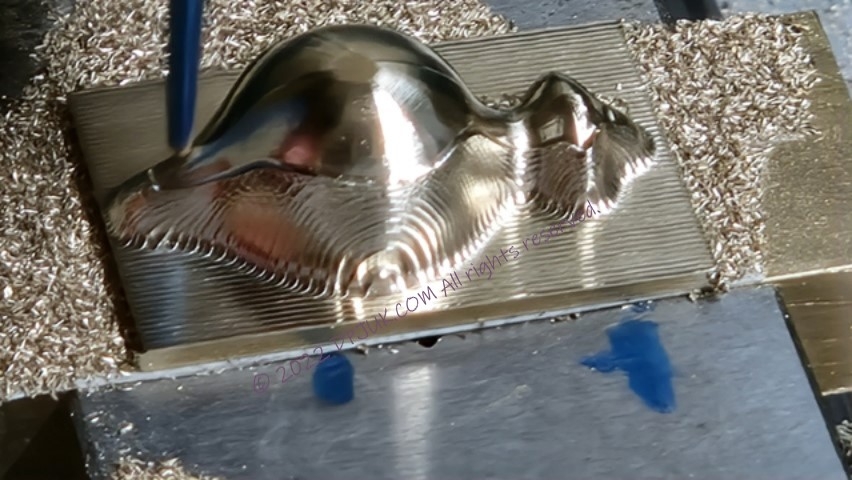

Part outer profile machined from solid brass

Once machined the part was media blasted to remove machining marks.

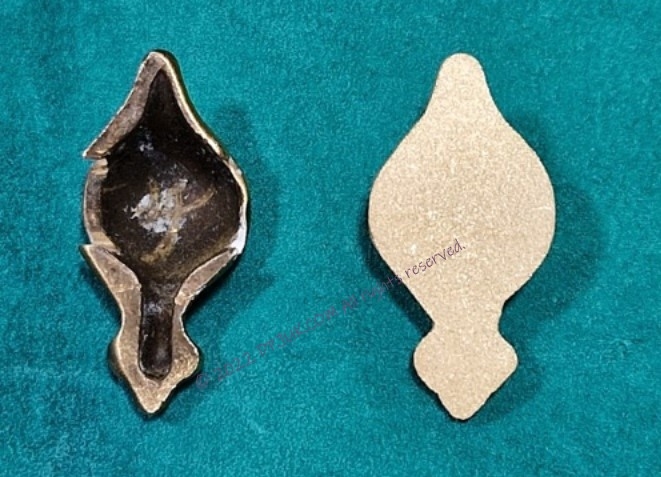

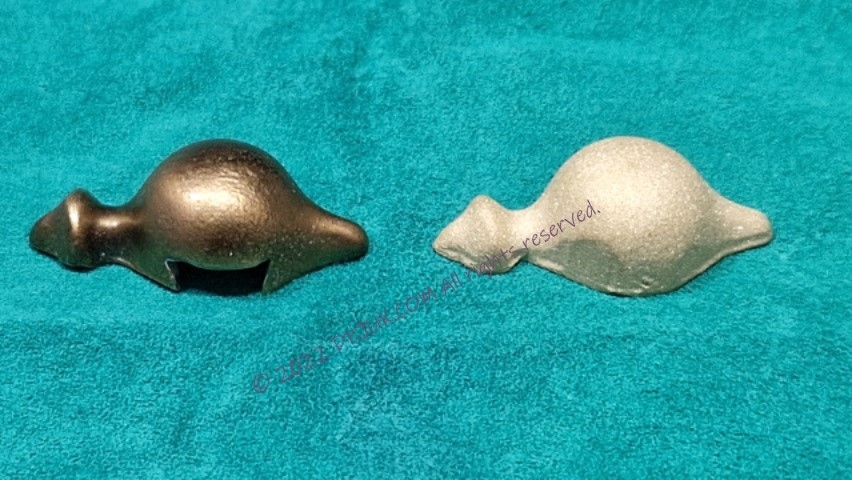

Original part (Right) New part media blasted (Left)

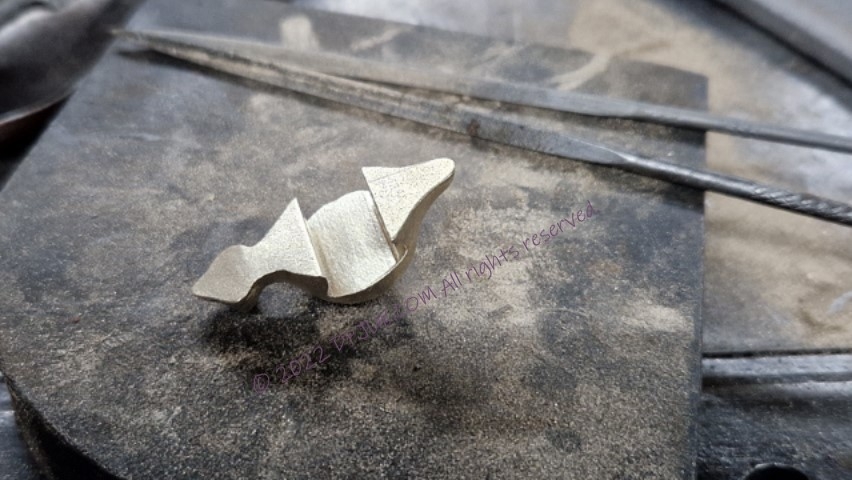

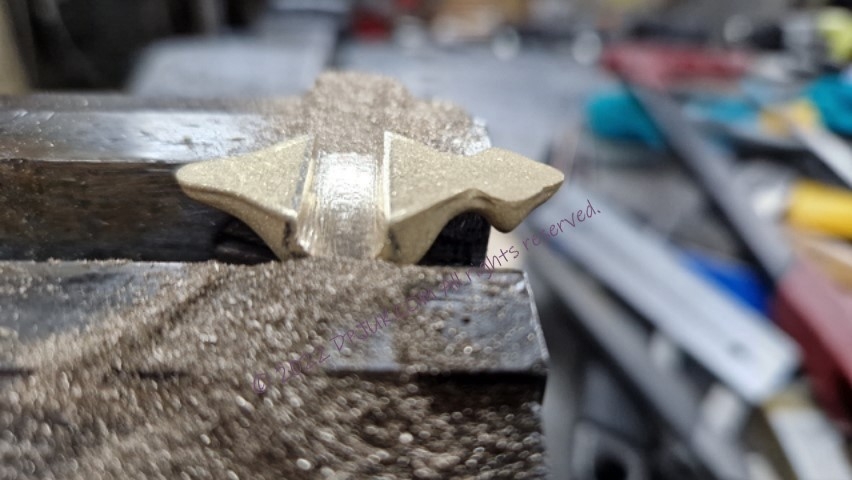

Dovetail slot was hack sawed and filed to shape.

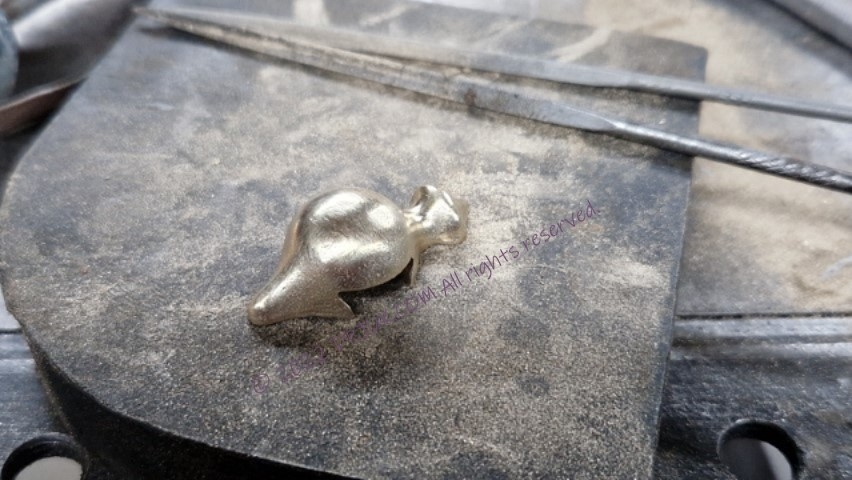

Outside was filed and finished with emery cloth to get a more natural and matching apprearance
