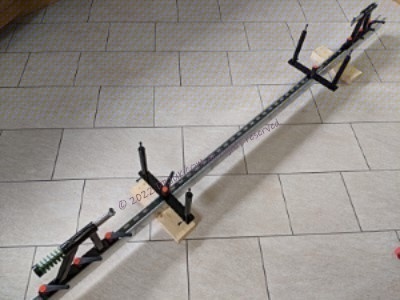

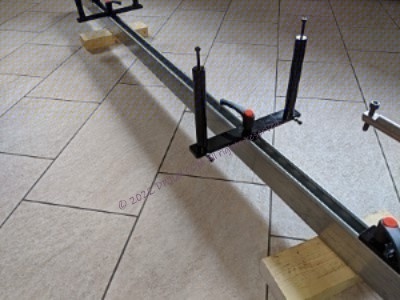

Bow String Jig (March 2018)

For making recurve and compound bow strings.

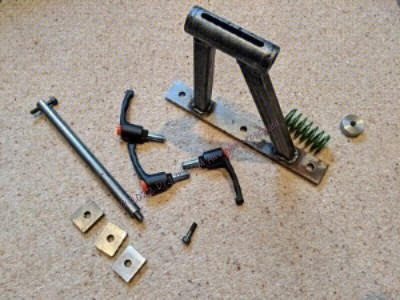

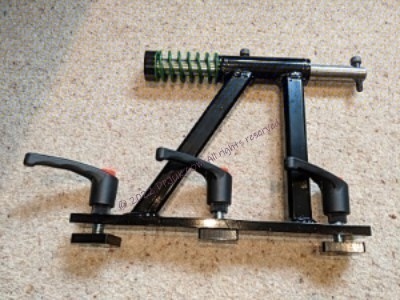

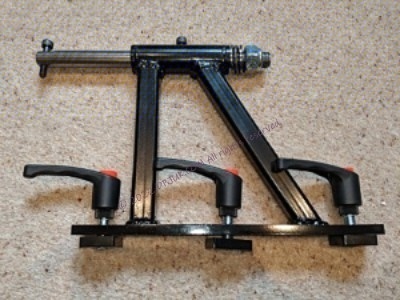

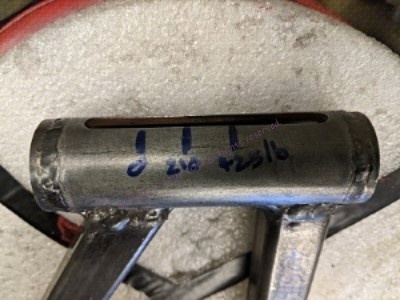

With a spring compression of 30mm it will tension the string to 425Lb for pre-streching.

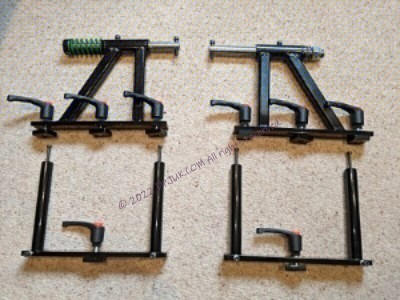

It has since been modified so it now folds in half for easy storage and transport.

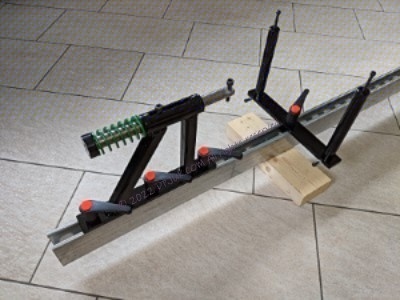

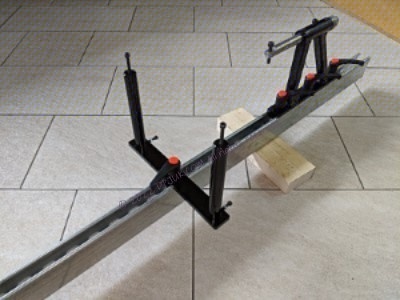

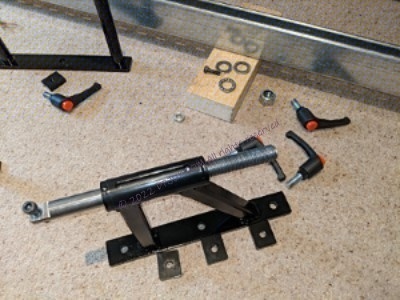

Made from Uni-Strut channel.

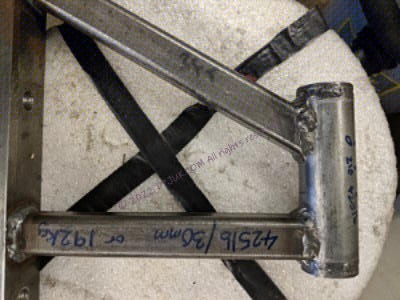

String pre-tension of 412lb with 30mm spring compression

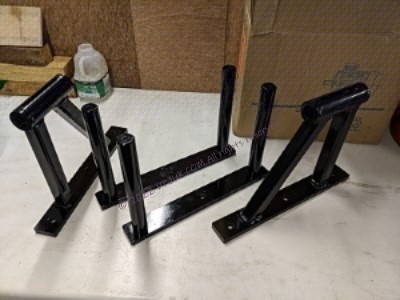

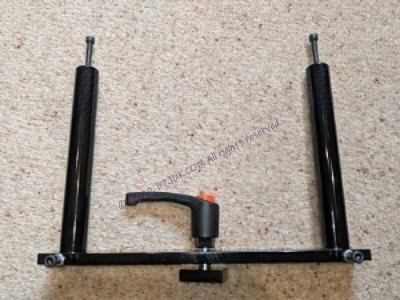

All parts now powder coated.

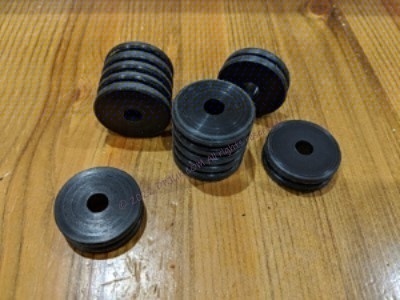

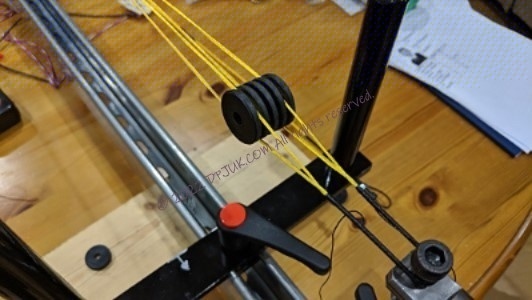

String seperators machined from nylon. Great for keeping the colours seprate when making 2 or 3 coloured strings
