Compound Bow Press (Nov 2018)

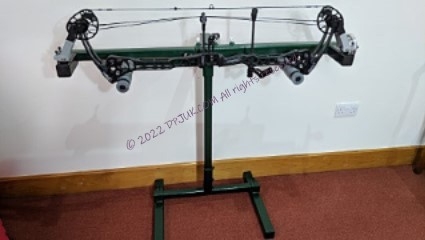

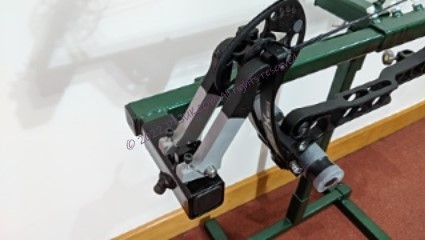

Compound bow press.

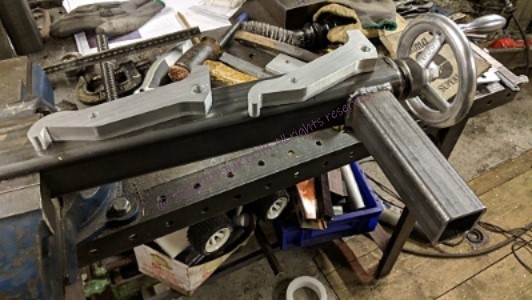

Made from 50mm and 40mm square tube and constructed so it can be taken apart for transport.

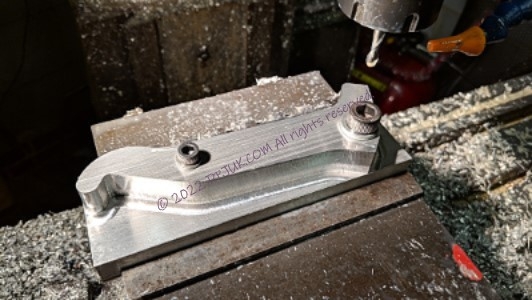

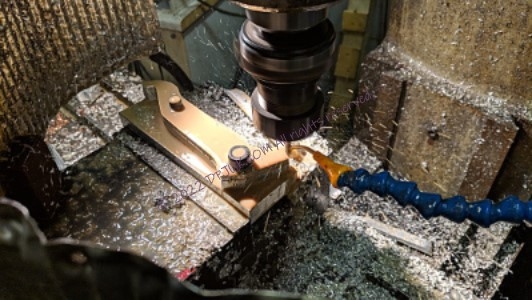

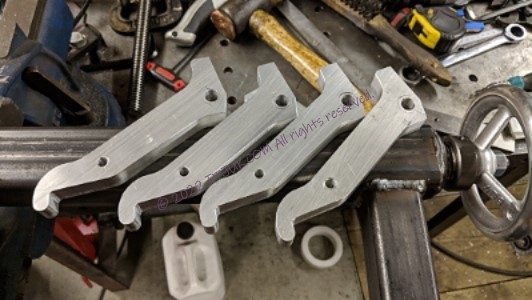

The fingers are machined from aluminium and anodised with PVC dipped ends.

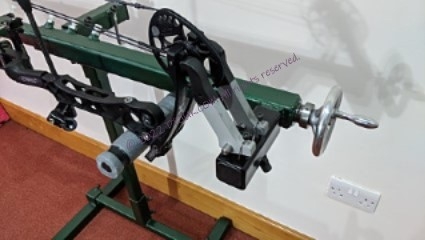

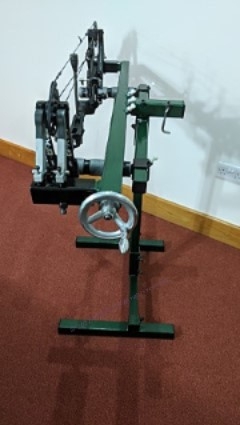

The handle turns a square threaded lead screw with ball bearing thrust washers to aid for a smooth action.

The fingers can be removed as a unit so other assesories can be added at a later date.

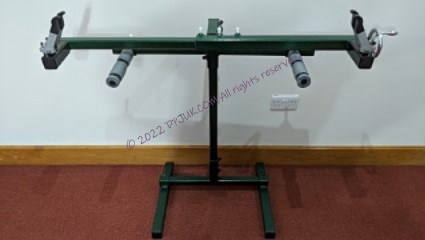

The foam covered arms can be raised or lowered to support the bow for easier installing.

Sand blasted ready for anodising

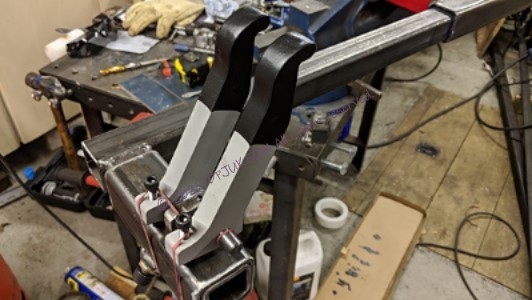

Tips dipped in PVC
